TOP > Hard Disk DATA TERMINATOR > DT-1000

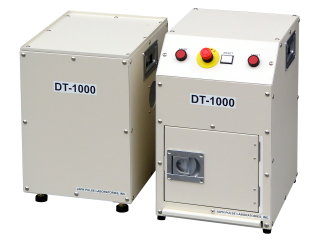

DT-1000

When disposing a computer, DT-1000 can completely destroy the remaining data on the hard disk in approximately 7 seconds, making it never again readable. DT-1000 punches two holes through HDD, leaving the internal platters completely crushed or warped so that they can no longer spin. You’ll be able to visually confirm the destruction of all the internal platters with the two punched-through holes. “What if the platters are left undestroyed?”… such doubt will never cross your mind. Verification with PC is not necessary.

• Complete destruction of HDD by punching of two holes, without leaving any undestroyed platters.
• Aluminum platters - creates burred holes that warp the platters, and the disks will never be readable again.
• Glass platters - completely crushes the platters.
• By two visually identifiable holes through HDD housing.
• Compact, light weight, and cost effective.
• Suitable for a large-scale operation, capable of destroying over 1000 disks a day.

Correspondence HDD		3.5inch / 2.5inch / 1.8inch / 1.0inch / 0.85inch
Number of platters handled per operation		1 to 10
Head		Cemented carbide punching head, diameter 8mmø
Destructive power		About over 2,000kg
Driving source		Hydraulic oil pressure
Safety devices		The loading door, double safety start switch, multiple safety sensor, emergency abort switch, etc.
Power supply		AC100V 350VA 50/60Hz (AC120V/220V is also available)
External dimensions & Weight	Main unit	(W)310×(D)380×(H)500mm About 30kg
	Pump	(W)310×(D)430×(H)450mm About 23kg
