TOP > Hard Disk DATA TERMINATOR > DT-500N

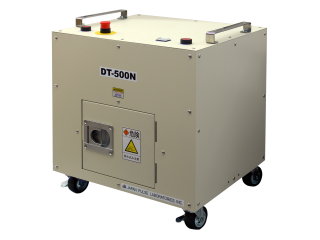

DT-500N

When disposing a computer, DT-500N can completely destroy the remaining data on the hard disk in approximately 20 seconds, making it never again readable. DT-500N punches two holes through HDD, leaving the internal platters completely crushed or warped so that they can no longer spin. You’ll be able to visually confirm the destruction of all the internal platters with the two punched-through holes. “What if the platters are left undestroyed?”… such doubt will never cross your mind. Verification with PC is not necessary.

• Complete destruction of HDD by punching of two holes, without leaving any undestroyed platters.
• Aluminum platters - creates burred holes that warp the platters, and the disks will never be readable again.
• Glass platters - completely crushes the platters.
• By two visually identifiable holes through HDD housing.
• Compact, light weight, and cost effective.
• Suitable for a medium-scale operation, capable of destroying over 500 disks a day.

Correspondence HDD	3.5inch / 2.5inch / 1.8inch / 1.0inch / 0.85inch
Number of platters handled per operation	1 to 5
Head	Cemented carbide punching head, diameter 10mmø
Destructive power	About 2,000kg
Driving source	Motor
Safety devices	The loading door, double safety start switch, multiple safety sensor, emergency abort switch, etc.
Power supply	AC100V 200VA 50/60Hz (AC120V/220V is also available)
External dimensions	(W)465×(D)415×(H)520mm
Weight	83kg
