TOP > Speed measuring instrument

Speed measuring instrument

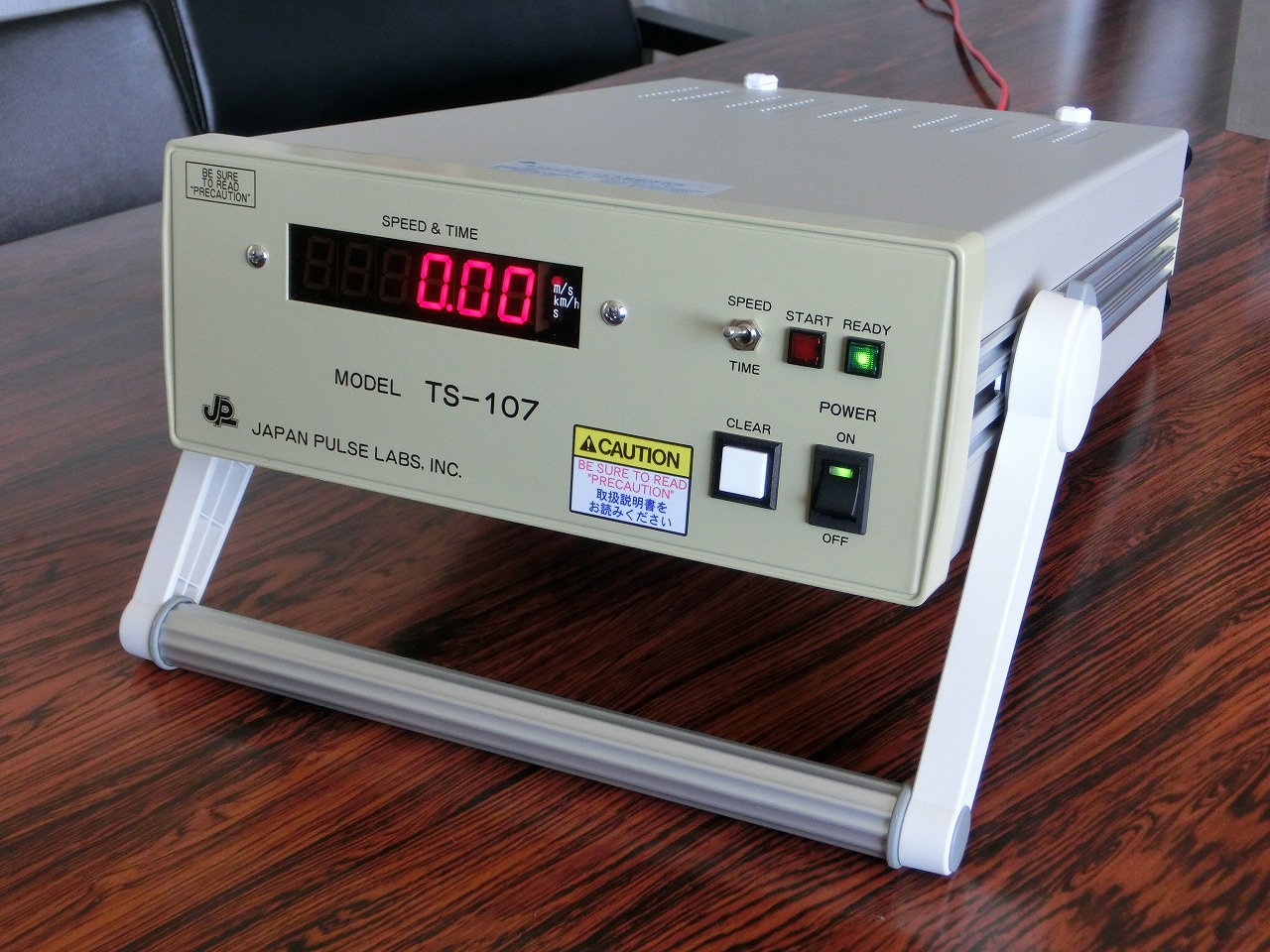

Model TS-107 is a measuring instrument to measure speed & time with high precision. This machine can measure time & speed of all the products concerned with time and speed such as automobile, and time in sports.

• Time ranging from 1/100000 sec. (0.1ms) to 1,000,000 sec. (11.5 days) and speed ranging from 0.01m/s to 10000 km/h can be measured. (Standard specifications)
• Printing out of data and data collection by personal computor is possible. (Options)
• A variety of sensor assortment in accordance with usage. Max.4 assortments are possible.
• 2-power source system, ac power source and battery DC-12V makes it possible to use outdoors.
• You can assort and make an order-made system very easily in accordance with usage.

Time measurement	0.01ms to 999999s (6 ranges)
Speed measurement	0.01m/s to 100000km/h (72 ranges) Speed is displayed after measuring passing time between 1 pair of sensors by calculation. (CPU:Z-80)
Accuracy	±1×10-5
Display	6 digit, Red LED, Letter height : 15mm
Sensor	1 to 4 assorted photo sensors or contact input (O.C. is possible)
Distance among sensors	6 kinds, (Only meauring speed) 2m, 1m, 0.5m, 0.1m, 20mm, 10mm

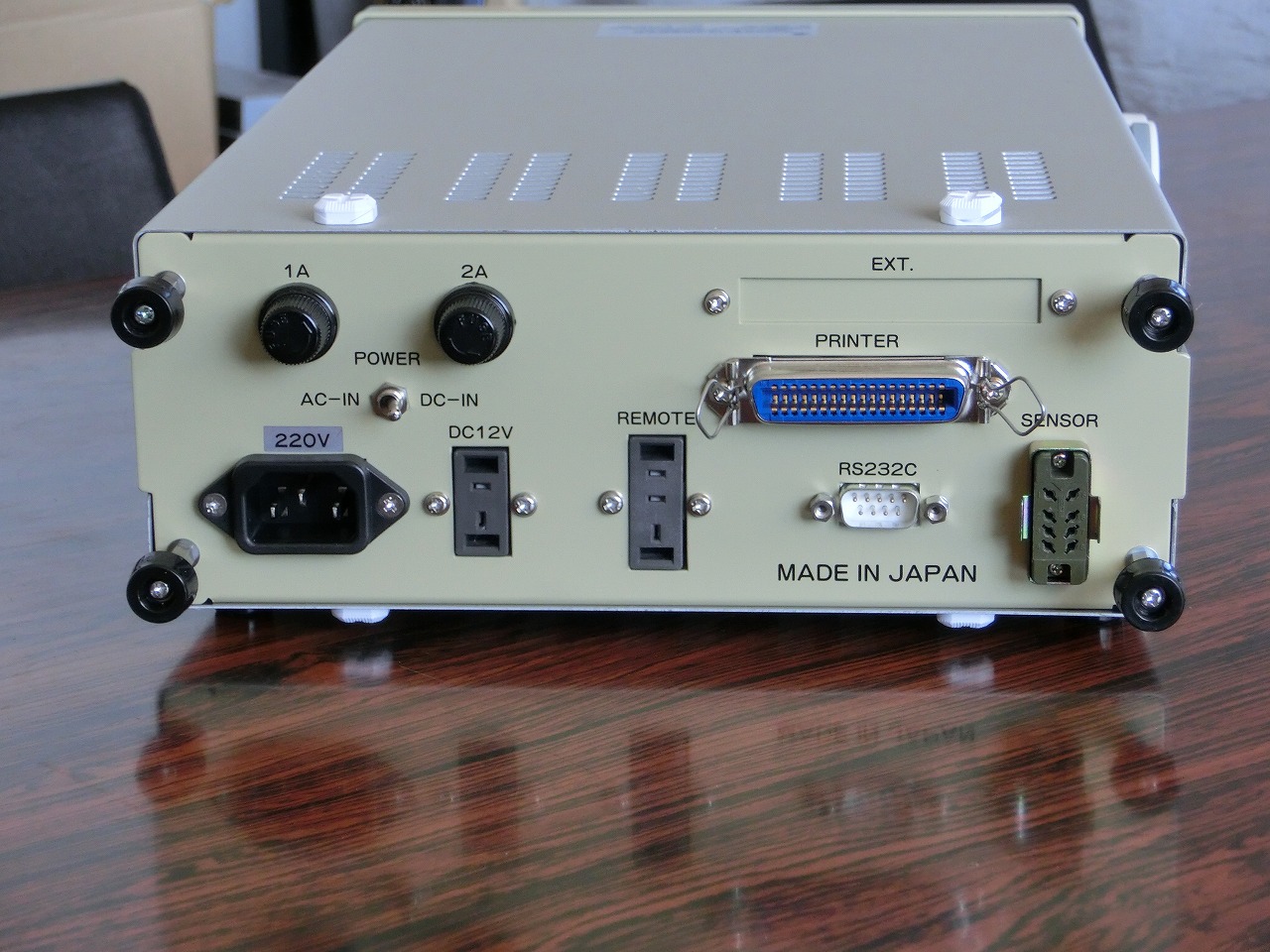

Output	Parallel port : Correspondent to centronix. Serial port : RS-232C
Power supply	AC100/120/220V / DC12V About 20W
External dimensions	(W)240×(D)370×(H)100mm
Weight	About 4.5kg
Using conditions	Temperature 0 to 40°C, Humidity 20 to 80%RH

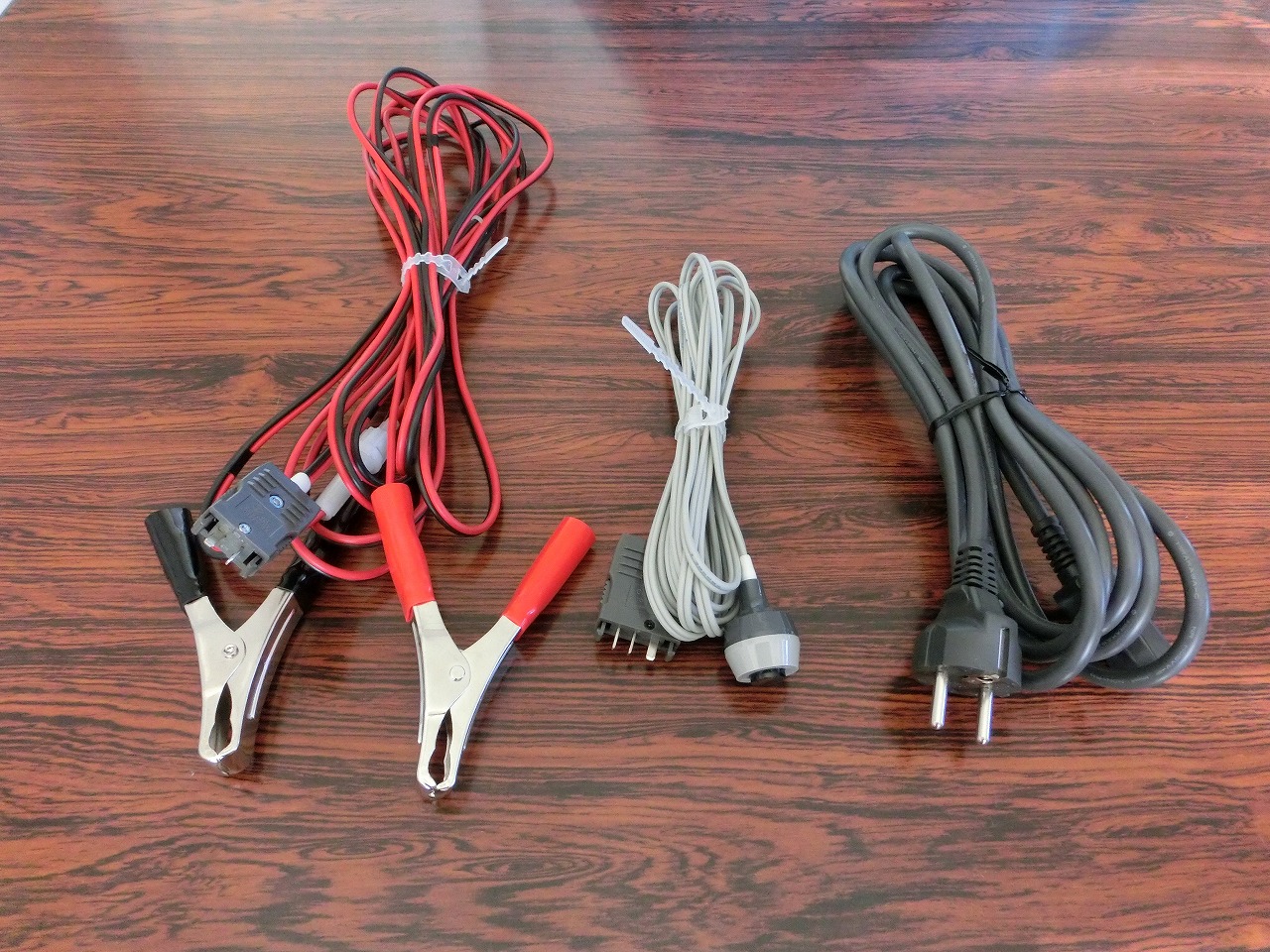

Accessories	AC cord ×1, DC power cord ×1, Instruction manual ×1

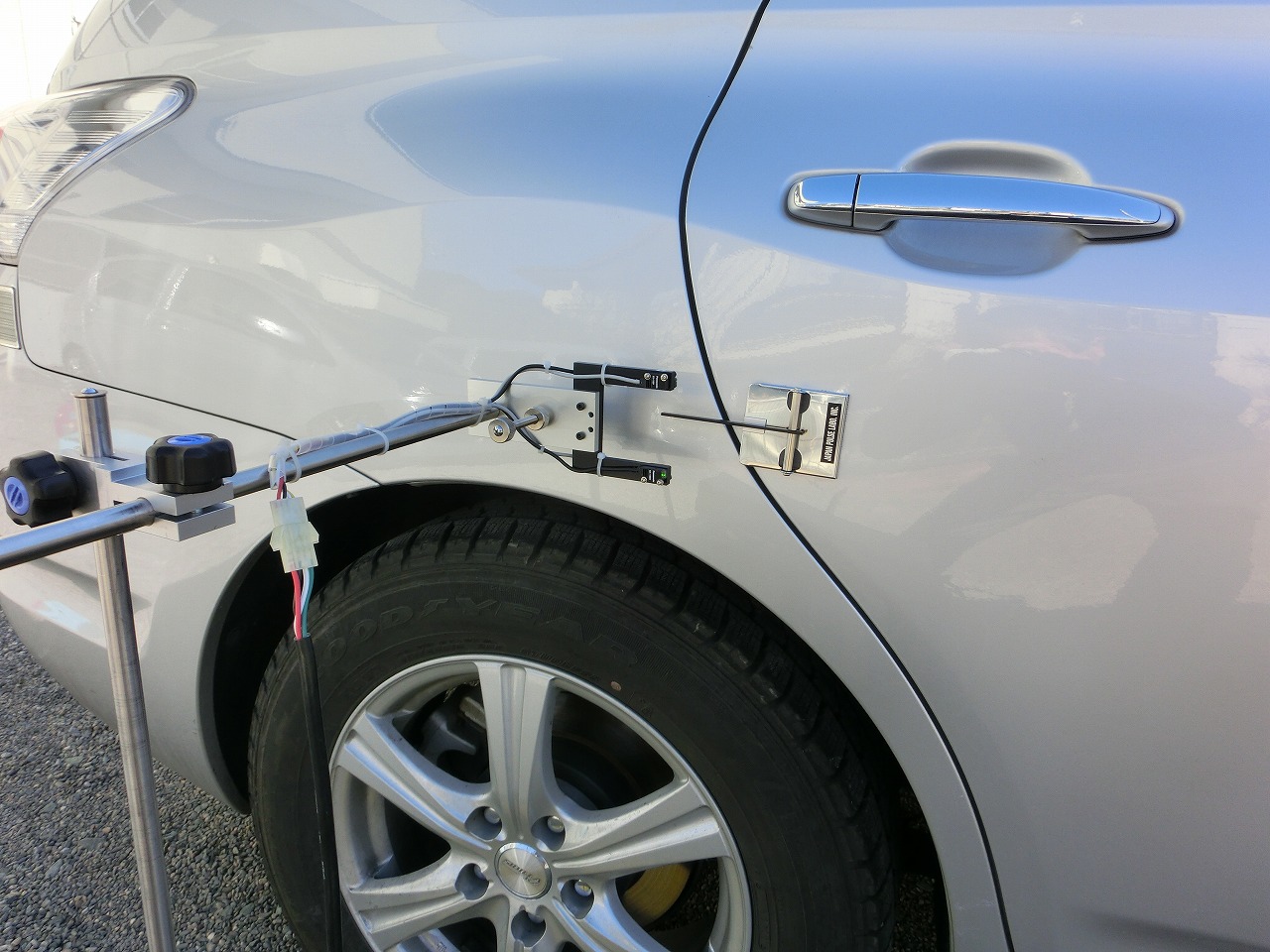

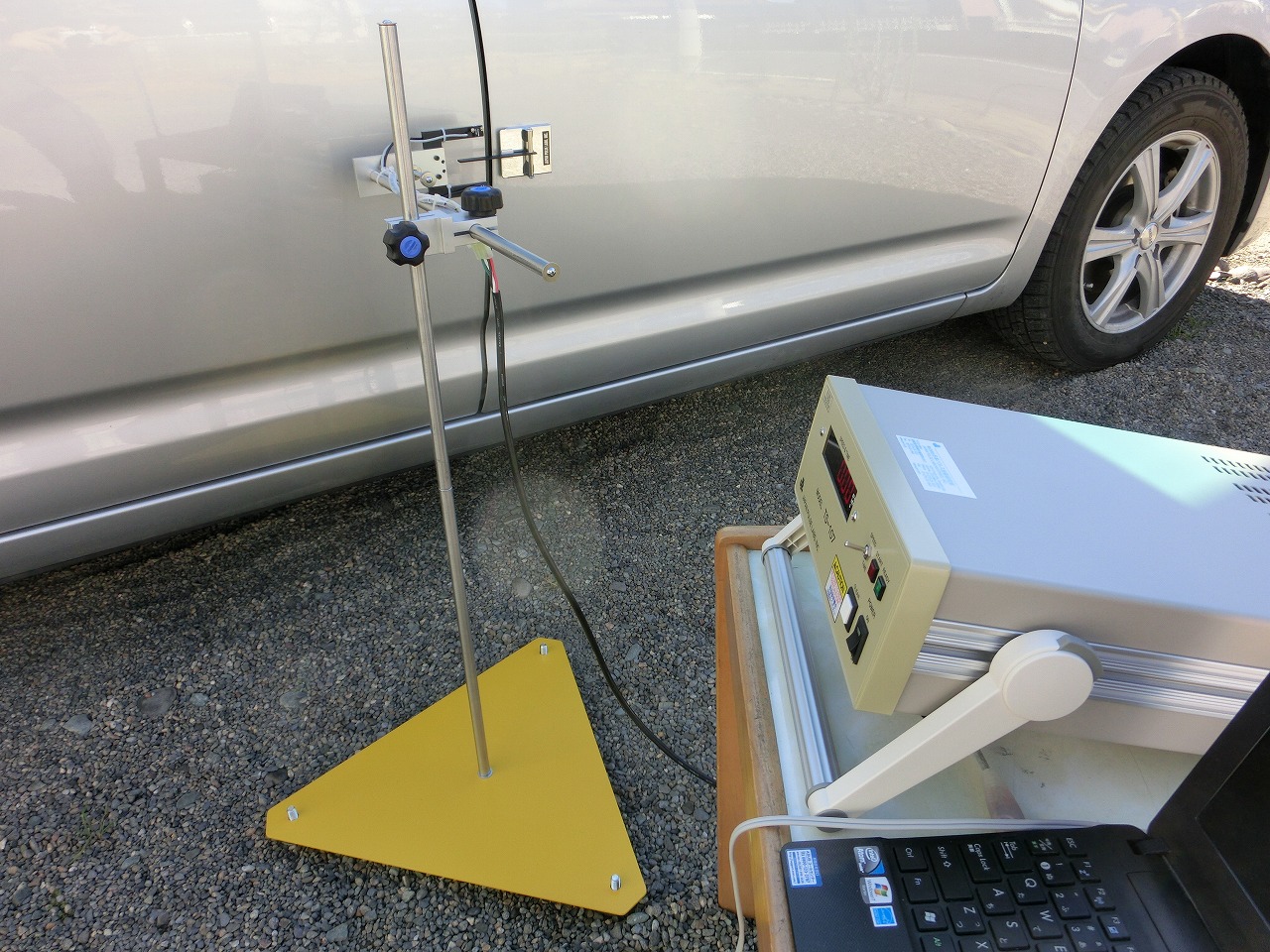

The fitness of automobile's doors is one of the important factors to assess quality of the automobile. The minimum force to be required for complete door closing, is one of the standards of judgement of quality of automobiles. TS-107-D2 is measuring instrument to measure the speed of closing door of automobiles. It is siuitable for designing automobile's door and for quality control.

Force to require to close door.
F(kg•m/s) = Door weight(kg) × Speed(m/s)

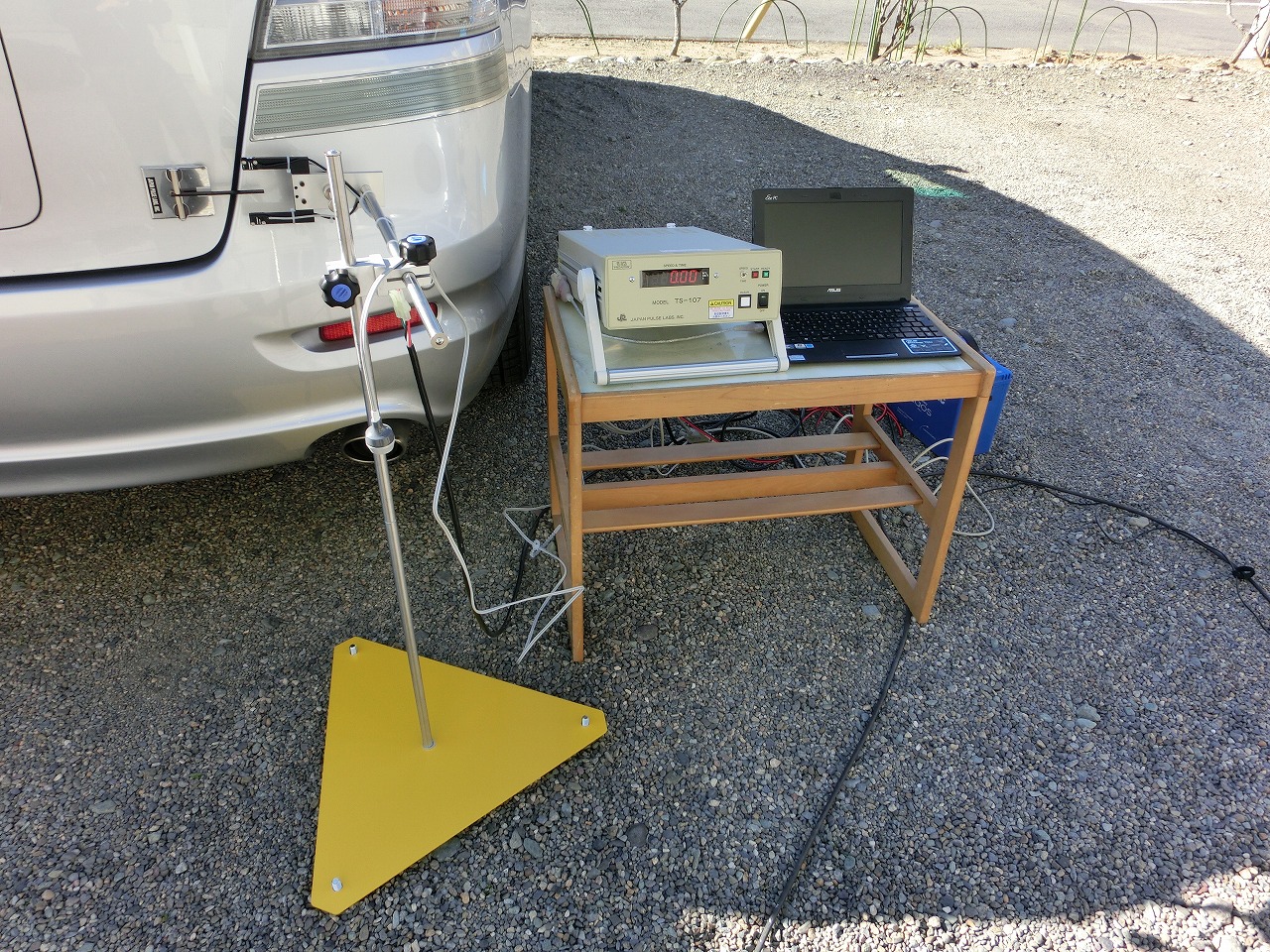

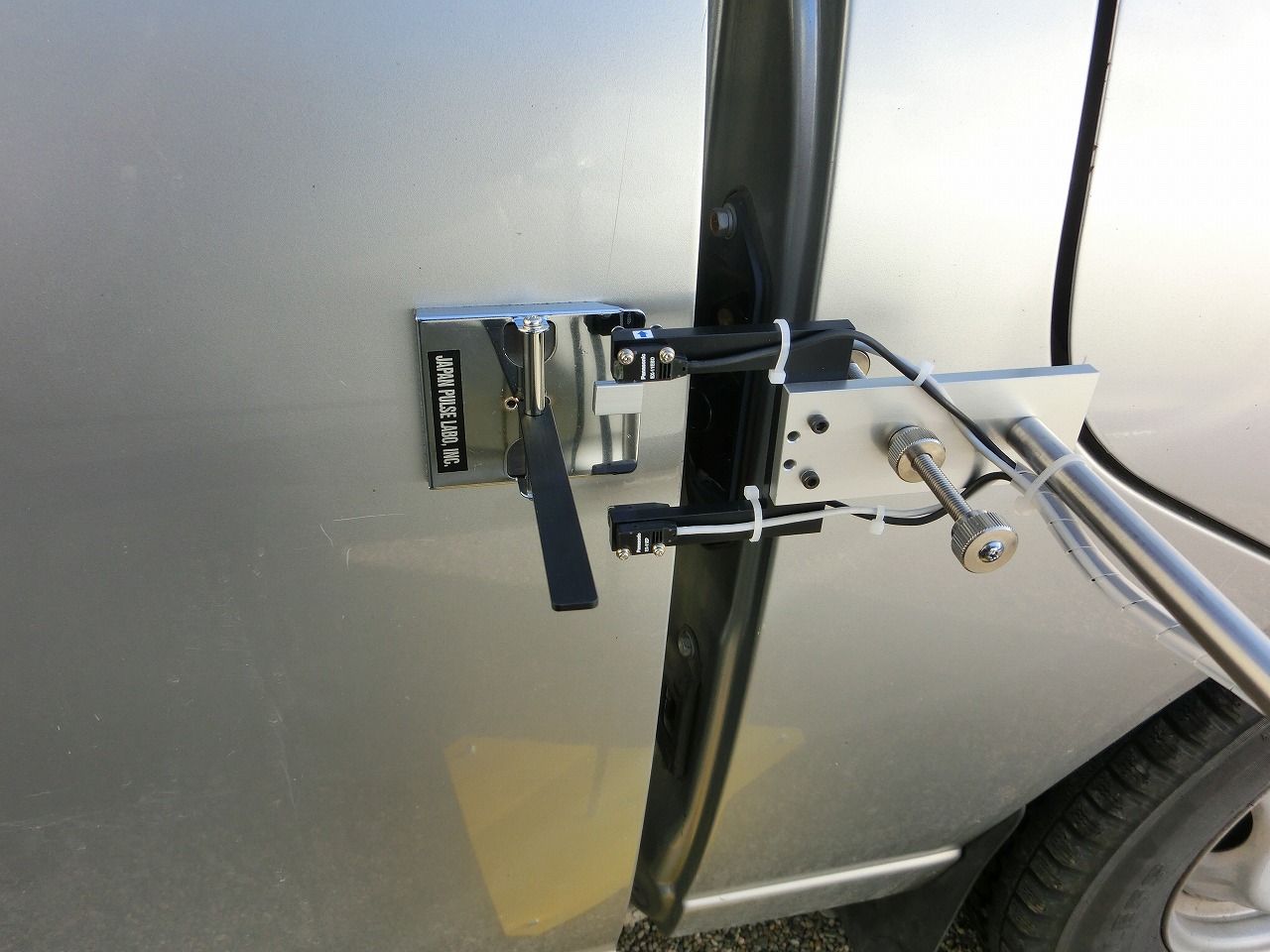

• Can measure closing speed of the doors of all the automobiles, including slide door, hatch back door in the rearnost part of automobiles.
• Printing out of the data and totalization of the same can be done by personal computer (Option)
• 2-power-source system, AC power source & Battery, enables to use the instrument outdoors.

Measurable time range		0.00 to 9999.99ms
Measurable speed range		0.01 to 9999.99m/s Speed is displayed after measuring passing time between 1 pair of sensors by calculation. (CPU:Z-80)
Measurement accuracy		±1×10-5
Display		6 digit, Red LED, Letter height : 15mm

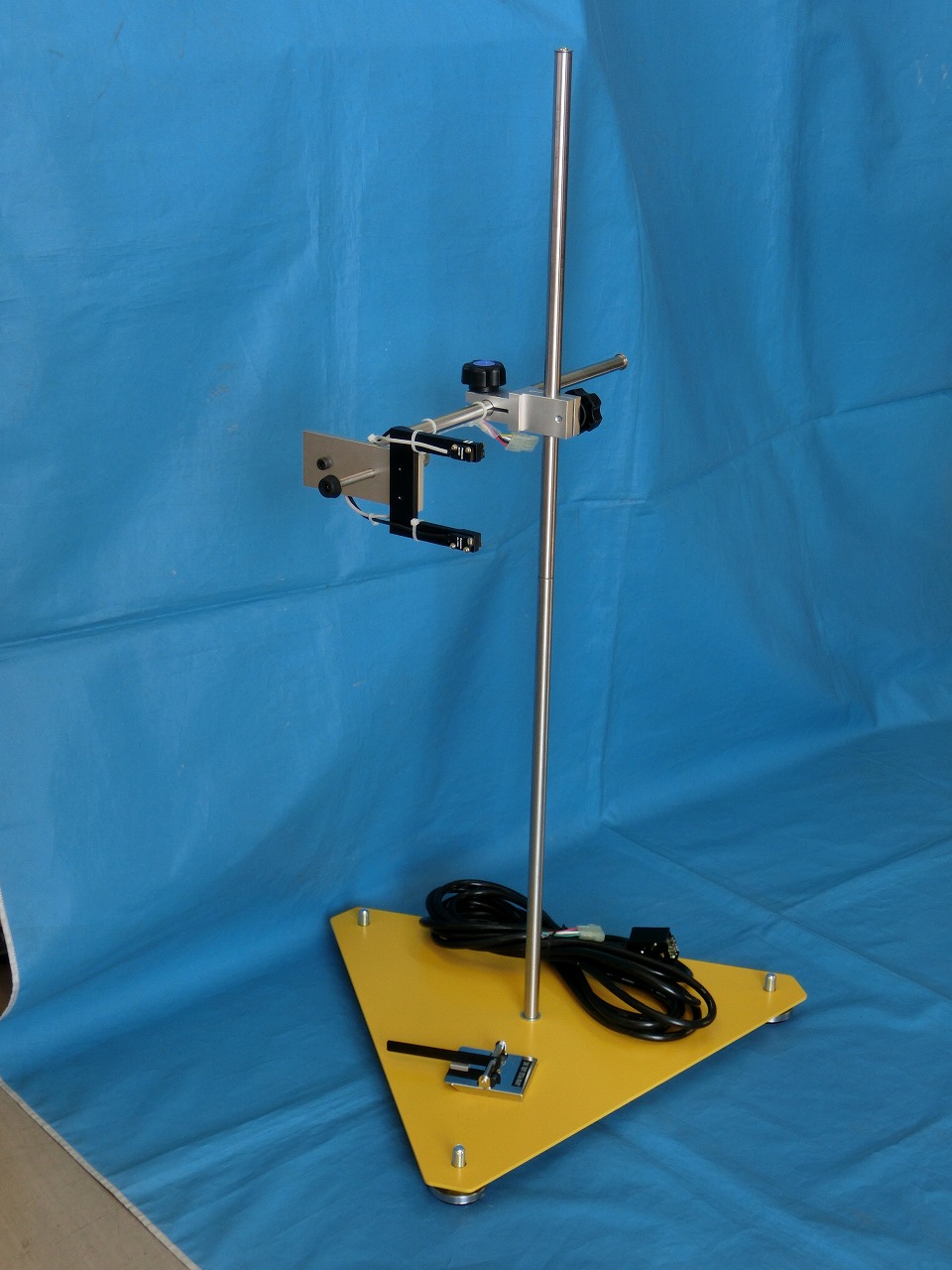

Sensor	Type	Transparent type photo sensor
	pitch	10mm
	Model	F-type for normal door A-type for normal door, slide door, hatch back door
Power supply		AC220V / DC12V About 20W
External dimensions, Weight	Main body	(W)240×(D)370×(H)100mm About 4.5kg
	Sensor	(W)580×(D)400×(H)840mm About 5kg
