HT-1350

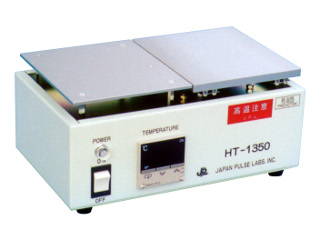

HT-1350 is a highly sensitive hot-plate, specially designed for reflow soldering of Hybrid IC boards, Mini-SMT boards, and such. This model includes a work plate, providing greater efficiency and safety.

Features

Constant temperature is maintained through proportional thermoregulatory control.
Operation is facilitated by provision of the work plate.

Specifications

Hot plate	120×140mm
Work plate	120×140mm
Operable temperature range	0 to 300°C
Temperature precision	±1%
Sensor	Thermoelectric couple K(CA)
Temperature control	PID
Heater	Plate heater 350W
Start-up time (20°C→200°C)	7 minutes
Applicable circuit boards	Max 120×140mm
Power supply	AC100V/120V/220V/240V 360W
External dimensions	(W)250×(D)180×(H)117mm
Weight	2.5kg
