RF-110N2MK2

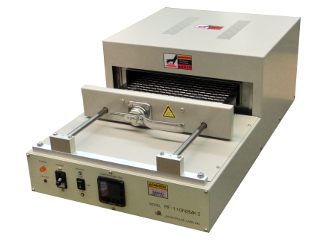

RF-110N2MK2 is a manual far-infrared reflow soldering machine which is applicable for nitrogen(N₂) gas. It can reflow-solder both faces of 200×200mm printed circuit boards. Highly suitable for trial manufacture, testing and production of small quantities of multi-kind of SMT board.

Features

It is infrared 1 zone heating type.
It can reflow-solder both sides of PC boards, without applying adhesive to the printed board up to 200×200mm.
It is desk-top type nitrogen(N₂) reflow soldering machine which is the smallest in the world and cheap.

Specifications

Heating section	Zones	1
	Depth	210mm
	Width	210mm
	Height of an inlet	20mm
Heating	Method	far infrared rays
	Temperature control	P.I.D. temperature controller.
	Max temperature	300°C
Conveyor		Batch type
Cooling		Natural cooling.
Power supply		AC120/220V 1.5kW 50/60Hz
Nitrogen supply quantity		20 to 30ℓ/One time(2'30") The supply of N₂ is only during the time from START to finish.
External dimensions		(W)340×(D)590×(H)210mm
Weight		about 16kg
