TOP > Reflow soldering related equipment > RF-630

RF-630

The model RF-630 is a small Reflow Soldering Machine corresponding to lead-free soldering and using infrared radiation for the basic heating. While this is a small table-top reflow machine, it a method with six far infrared (IR) zones, and the precise and stable temperature profile required for lead-free reflow soldering can be obtained. By use of far infrared radiation, the various requirements for lead-free soldering can be met sufficiently. A max. temperature of 350°C and solder wettability are realized.

• This is a table-top reflow soldering machine using infrared. Circuit boards up to 300×300 mm can be processed.

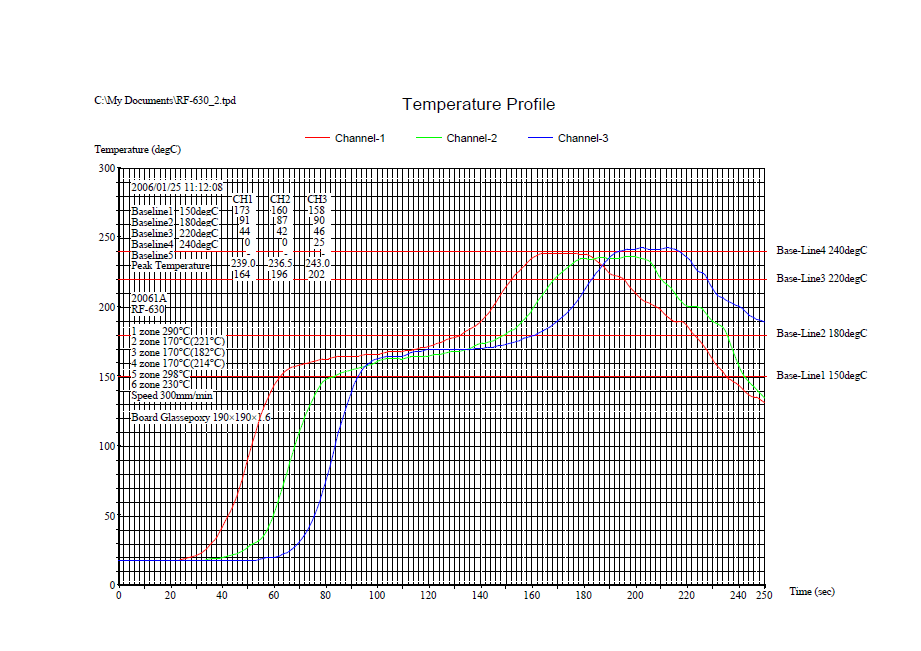

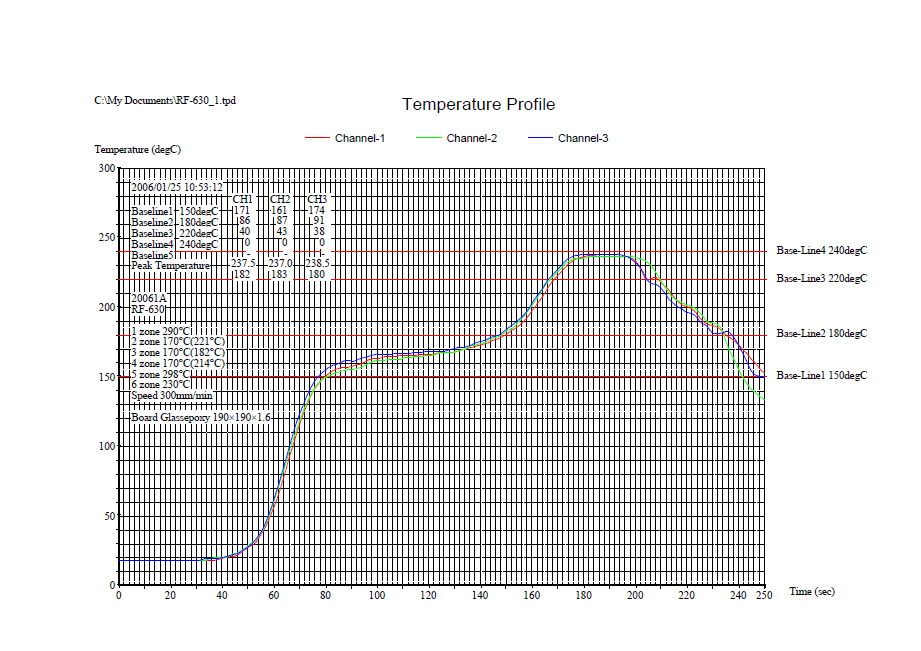

• Rapid heating is performed with a 6-zone quartz heater using far infrared radiation, and the desired temperature profile can be obtained.
• Precise temperature control (±0.3%) up to max. 350°C and stable temperature profiles can be obtained with a high-precision PID temperature controller.

Heating section	Zones	6
	Length	780mm
	Width	300mm
	Height of an inlet	30mm
Heating	Method	far infrared rays
	Temperature control	P.I.D. temperature controller.
	Max temperature	350°C
Conveyor	Method	SUS mesh belt.
	Width	300mm
	Speed	90 to 1400mm/min
	Direction	R → L or L → R (at user's request)
Cooling		Forced cooling by a fan on the outlet side.
Power supply		Single phase 200V About 6.7kW Single phase 220V About 7.8kW
Safety devices		Leak/Over-current circuit breaker Emergency stop switch Alarm output (over/under temperature / heater disconnection)
External dimensions		(W)1500×(D)590×(H)640mm
Weight		about 140kg
