VP series
| VP-15S | Exclusively for C and R chips |

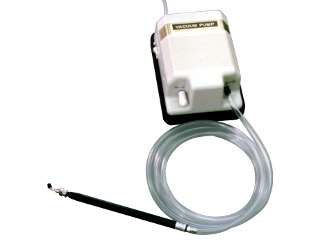

| VP-40S | Basic model |
| VP-40W | Twin pen |
| VP-41SD | High-strength type |
| VP-41WD | High-strength type, Twin pen |
| VP-100SD | High-strength type, air type |
Features
- Uses a general-purpose electromagnetic diaphragm pump, eliminating the need for vacuum or air sources. (Except for model VP-100SD)
- The grip(pen) is made of light weight alloy and is very suitable for handling electronic parts, such as silicon semiconductor chips and QFP-LSI, which are susceptible to static electricity.
- All of the pincettes use a soft pliable silicon hose, and the grip control is very simple.
- By adding a 0.34φ(G23R) nozzle, it is possible to handle very minute 1005 sized chips.
Specifications
| VP-15S | VP-40S VP-40W | VP-41SD VP-41WD | VP-100SD | ||
|---|---|---|---|---|---|
| Vacuum pump | Method | Electromagnetic diaphragm pump | Vacuum ejector | ||
| Model | VP-1500 | VP-4000 | VP-103 | ||
| Power supply | AC100V 50/60Hz (120V,220V,240V also available) | - | |||
| 2.5W | 3.5W | - | |||
| Air supply | - | - | - | 1 to 4kgf/cm2 | |
| Vacuum pressure | 50mmHg(50Hz) 60mmHg(60Hz) | 90mmHg(50Hz) 100mmHg(60Hz) | 0 to 400mmHg | ||
| External dimensions | 67×114×54mm | 91×132×60mm | 70×120×50mm | ||
| Weight | 230g | 420g | 370g | ||
| Pen | Quantity | 1 set | VP-4*S* = 1 set VP-4*W* = 2 sets | 1 set | |
| Grip | VP-10B aluminum 8φ×145mm approx. 11g | ||||
| Hose | OD6φ×ID4φ×1.5m silicon hose | ||||
| Attached Nozzle Suction pad | 0.34φ | ○ | ○ | ○ | ○ |
| 0.72φ | ○ | ○ | ○ | ○ | |
| 1.11φ | ○ | ○ | ○ | ○ | |
| 3.5φ | ☓ | ○ | ○ | ○ | |
| 6φ | ☓ | ☓ | ○ | ○ | |
| 8φ | ☓ | ☓ | ○ | ○ | |
| Suction capacity | 0.25g/1.11φ | 0.6g/1.11φ 4g/3.5φ | 10g/6φ 25g/8φ | 50g/6φ 100g/8φ | |
