RF-110MK2

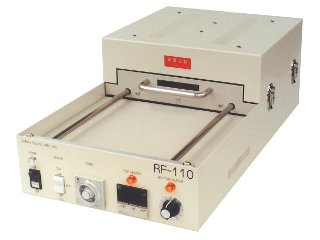

(Photo : RF-110)
Features
- It is infrared 1 zone heating type.
- It can reflow-solder both sides of PC boards, without applying adhesive to the printed board up to 200×200mm.
Specifications
| Heating section | Zones | 1 |
|---|---|---|
| Depth | 210mm | |
| Width | 210mm | |
| Height of an inlet | 20mm | |
| Heating | Method | far infrared rays |
| Temperature control | P.I.D. temperature controller. | |
| Max temperature | 300°C | |
| Conveyor | Batch type | |
| Cooling | Natural cooling. | |
| Power supply | AC120/220V 1.5kW 50/60Hz | |
| External dimensions | (W)300×(D)550×(H)195mm | |
| Weight | about 14kg | |
