reference videoBM-100 / BM-100V

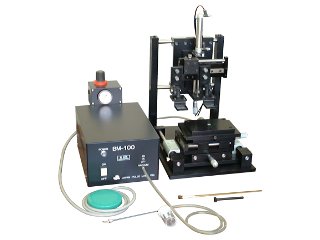

These BM-100/BM-100V are machine for mounting ball terminals on BGA, CSP, MCM and other packages by useing a microscreen (µS-100series, option). lts applicability ranges from CSP with 30 pins to MCM with 3,000 pins for balls with a diameter of 0.28mmų to 0.89mmų. With the machine it is easy to mount ball terminals on a small quantity of packages when re-balling on reprocessed packages, or when mounting balls on newly developed chips, etc.
Features
- Application range from CSP with 30 pins to BGA and MCM with 3,000 pins for balls with a diameter of 0.28mmų to 0.89mmų. (Depending on a microscreen selected for use with a package. The microscreen is optional.)
- Flux/cream solder printing and ball mounting are possible with this single machine. (The user has to arrange for two types of screens: a screen for cream printing and a screen for ball mounting.)
- The screen position (X, Y, Z) can be fine-adjusted with 10µm accuracy based on the micro meter.
- Fixation of the package and the screen vertical movement are controlled automatically with the opereting switch.
- It is possible to carry out reflow-soldering immediately after ball alignment; a manual-type N2 reflow machine RF-110N2 is also available.
- The high resolution CCD camera with a zoom lens allows an easy positioning of the screen and the work. With the 5.8× to 17.8× zoom it is easy to handle positioning of packages even with large and microscopic patterns.
Specifications
| BM-100 | BM-100V | ||
|---|---|---|---|
| Fine-adjustment of X,Y,Z | 15mm (10µm steps) | ||
| Air input | 2 to 5kgf/cm2 | ||
| Hose | OD6mmų×ID4mmų | ||
| Power supply | AC120V or 220V 100VA 50/60Hz | ||
| External dimensions, Weight | Main unit | (W)240×(D)225×(H)410mm 10kg | (W)240×(D)325×(H)580mm 12kg |
| Control box | (W)180×(D)250×(H)110mm 3kg | ||
| CCD camera | CCD | - | 350,000 pixels, 1/2 inch |
| Display magnification | - | 5.8× to 17.8× zoom | |
| Monitor | - | 13inch LCD monitor | |
| µS-100series (option) | ||
|---|---|---|
| Size | 14×28mm to 54×63mm (7 kinds) | |
| Thickness | 0.15mm or 0.13mm | |
| Material | Frame | SPCC |
| Screen | SUS304 | |
