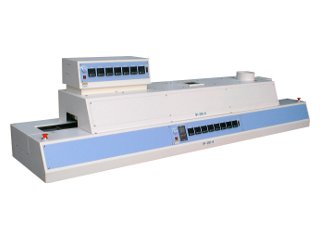

RF-250-8

The RF-250-8 is a hot plate type reflow soldering machine with large heating capacity. Using far-infrared and hot-air heating, it can reflow solder difficult boards requiring large heating capacity such as ceramic and enamel boards, as well as steel, aluminum, and other metal circuit boards.
The carrier-bar (or Teflon sheet carrier) presses the circuit board to be soldered directly on top of the hot plate and slides it along. As the board is directly heated by the hot plate, even boards requiring high heat capacity can be efficiently reflow soldered in a short time and with high temperature precision.

• 8 zone heating plate makes reflow soldering of enamel or metal circuit boards easy.
• The RF-250-8 can reflow solder boards measuring up to 150×150×5mm.
• 8 heating zones in lower section and 1 heating zone in upper section all have digital display and PID control. Full operation can be carried out with high precision at stable temperature.
• With a heating range up to maximum 400°C, the RF-250-8 can perform high-temperature soldering of over 300°C.

Heating section	Zones	8
	Length	1600mm
	Width	150mm
	Height of an inlet	40mm
Heating	Method	Hot plate + up IR heater.
	Temperature control	P.I.D. temperature controller.
	Max temperature	400°C
Conveyor	Method	Carrier bar (metal fitting to push back of board) system. or Teflon sheet carrier system.
	Width	150mm
	Speed	50 to 1000mm/min (Digital)
	Direction	R → L
Cooling		Forced cooling by a fan on the outlet side.
Power supply		Single phase 240V about 13.6kW
Safety devices		Current leak/Over-current breaker Emergency stop switch Alarm output (over/under temperature) Signal tower Torque limiter for chain conveyor
External dimensions		(W)2370×(D)550×(H)620mm
Weight		about 181kg
