BM-100V

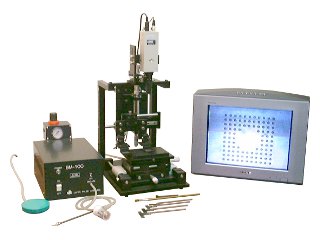

The BM-100V is machine for mounting ball terminals on BGA, CSP, MCM and other packages by useing a microscreen (µS-100series, option). lts applicability ranges from CSP with 30 pins to MCM with 3,000 pins for balls with a diameter of 0.28mmφ to 0.89mmφ. With the machine it is easy to mount ball terminals on a small quantity of packages when reballing on reprocessed packages, or when mounting balls on newly developed chips, etc.

Features

Application range from CSP with 30 pins to BGA and MCM with 3,000 pins for balls with a diameter of 0.28mmφ to 0.89mmφ. (Depending on a microscreen selected for use with a package. The microscreen is optional.)
Flux/cream solder printing and ball mounting are possible with this single machine. (Both the screen for cream printing and the screen for ball aligning these devices are necessary.)
The screen position (X, Y, Z) can be fine-adjusted with 10µm accuracy based on the micro meter.
Fixation of the package and the screen vertical movement are controlled automatically with the opereting switch.
It is possible to carry out reflow-soldering immediately after ball alignment; a manual-type N₂ reflow machine RF-110N2 is also available.
The high resolution CCD camera with a zoom lens allows an easy positioning of the screen and the work. With the 5.8× to 17.8× zoom it is easy to handle positioning of packages even with large and microscopic patterns.

Specifications

Fine-adjustment of X,Y,Z		15mm (10µm steps)
Air input		2 to 5kgf/cm²
Hose		OD6mmφ×ID4mm&phi/
Power supply		AC120V or 220V 100VA 50/60Hz
External dimensions, Weight	Main unit	(W)240×(D)325×(H)580mm 12kg
External dimensions, Weight	Control box	(W)180×(D)250×(H)110mm 3kg
CCD camera	CCD	350,000 pixels, 1/2 inch
CCD camera	Display magnification	5.8× to 17.8× zoom
Monitor		13inch LCD monitor

µS-100 series (option)
Size		14×28mm to 54×63mm (7 kinds)
Thickness		0.15mm or 0.13mm
Material	Frame	SPCC
Material	Screen	SUS304
