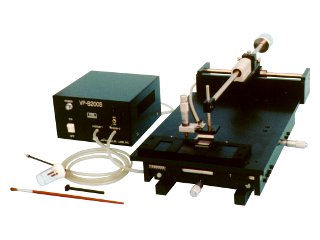

SP-100BR

The SP-100BR is machine for mounting ball terminals on BGA, CSP, MCM and other packages by useing a microscreen (µS-100series, option). lts applicability ranges from CSP with 30 pins to MCM with 3,000 pins for balls with a diameter of 0.28mmφ to 0.89mmφ. With the machine it is easy to mount ball terminals on a small quantity of packages when reballing on reprocessed packages, or when mounting balls on newly developed chips, etc.

• Application range from CSP with 30 pins to BGA and MCM with 3,000 pins for balls with a diameter of 0.28mmφ to 0.89mmφ. (Depending on a microscreen selected for use with a package. The microscreen is optional.)
• Flux/cream solder printing and ball mounting are possible with this single machine. (Both the screen for cream printing and the screen for ball aligning these devices are necessary.)
• The screen position (X, Y, Z) can be fine-adjusted with 10µm accuracy based on the micro meter.
• It is possible to carry out reflow-soldering immediately after ball alignment; a manual-type N₂ reflow machine RF-110N2 is also available.

Fine-adjustment of X,Y,Z		15mm (10µm steps)
Power supply		AC120V or 220V 10VA 50/60Hz
External dimensions, Weight	Main unit	(W)250×(D)450×(H)160mm 8kg
	Control box	(W)170×(D)220×(H)110mm 2kg

µS-100 series (option)
Size		14×28mm to 54×63mm (7 kinds)
Thickness		0.15mm or 0.13mm
Material	Frame	SPCC
	Screen	SUS304
