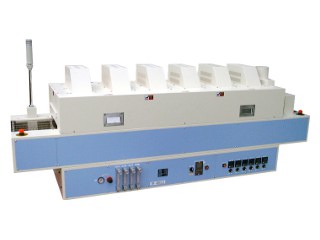

The model RF-560(RF-460L) is a medium Reflow Soldering Machine corresponding to lead-free soldering and using IR and hot air convection, and nitrogen (N2) for the basic heating. While this is a medium table-top reflow machine, it a method with 6 zones, and the precise and stable temperature profile required for lead-free reflow soldering can be obtained. By use of IR and hot air and nitrogen (N2), the various requirements for leadfree soldering can be met sufficiently.Features
- This is a table-top reflow soldering machine with correspondence to nitrogen (N2). Circuit boards up to 300×300mm can be processed.
- Rapid heating is performed with a 6-zone quartz heater using IR and hot air and nitrogen (N2), and the desired temperature profile can be obtained.
- Precise temperature control (±0.3%) up to max. 350°C and stable temperature profiles can be obtained with a highprecision PID temperature controller.
Specifications
| Heating section | Zones | 6 |
|---|---|---|
| Length | 1560mm | |
| Width | 300mm | |
| Height of an inlet | 30mm | |
| Heating | Method | IR + Hot air convection system |
| Temperature control | P.I.D. temperature controller. | |
| Max temperature | 350°C | |
| Conveyor | Method | SUS mesh belt. |
| Width | 300mm | |
| Speed | 90 to 1400mm/min | |
| Direction | R → L or L → R (at user's request) | |
| Cooling | Forced cooling by a fan on the outlet side. | |
| Power supply | Single phase 220V About 12.7kw | |
| Nitrogen supply quantity | about 140L/min(Oxygen density: about 5000ppm) | |
| Safety devices | Leak/Over-current circuit breaker Emergency stop switch Alarm output (over/under temperature / heater disconnection) | |
| External dimensions | (W)2200×(D)590×(H)820mm | |
| Weight | about 280kg | |
