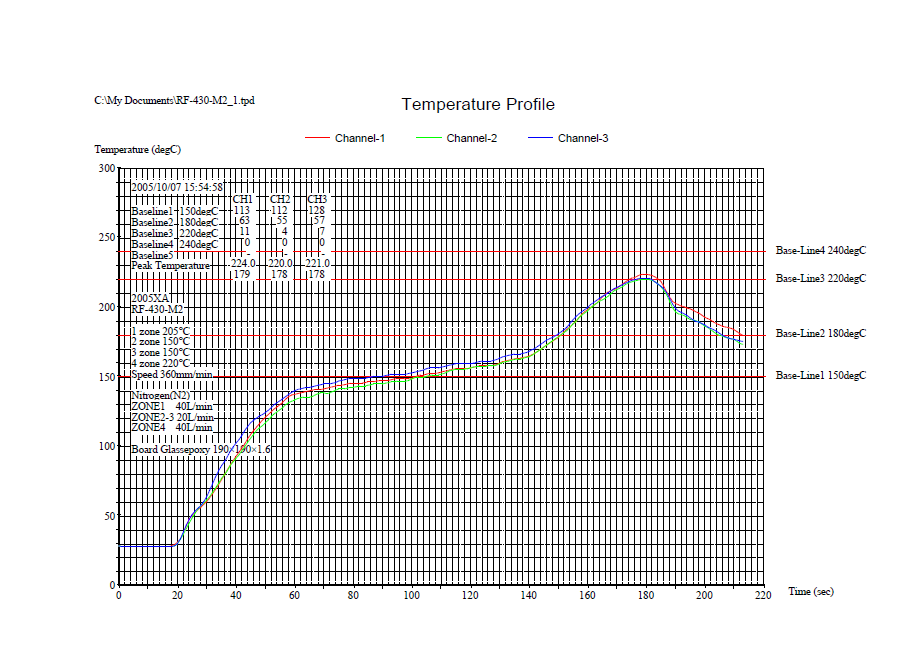

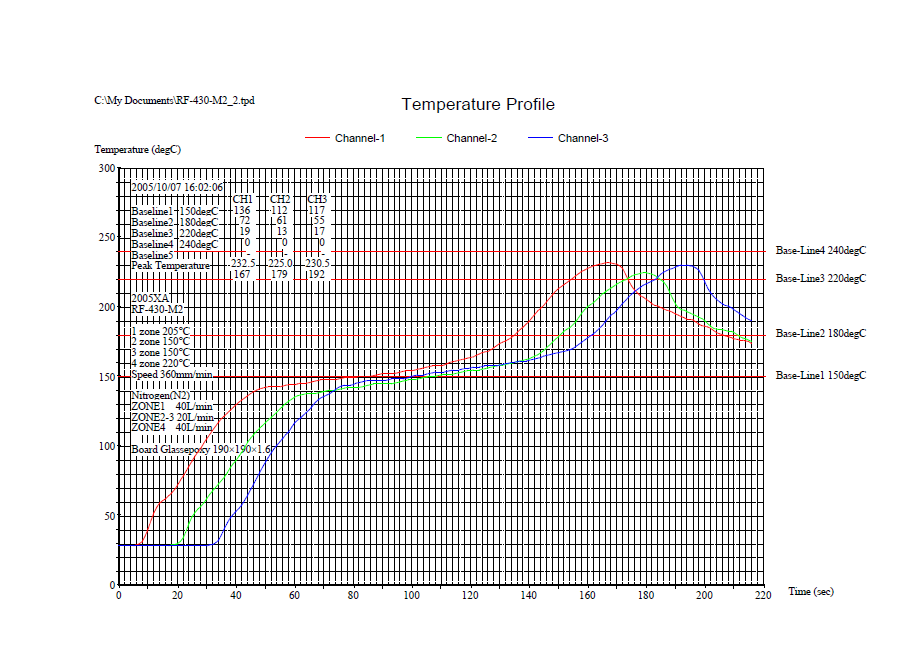

Catalog Video brochure Profile 1 Profile 2
Reflow soldering
General Catalog Reflow soldering equipment RF-110MK2 RF-110N2MK2 RF-430 series RF-460 RF-560 RF-630 RF-630PT RF-810 RF-210V RF-250 RF-250N2 RF-250-8 VF-500IS Reflow checker ▶ CTP series Hot plate ▶ HT-1350 HT-1350C HT-1370 HT-1370C HT-1420 HT-1800 Light beam soldering equipment ▶ LP-8150MK2 Dispenser ▶ HD-6780 Screen printer ▶ SP-100 SP-300L SP-450 SP-650 Metal mask ▶ µS-100 series Vacuum tweezer ▶ VP series Mounter ▶ MP-7500 series BGA remover ▶ BR-515 Reballing system ▶ BM-11 series SP-100BR BM-100 BM-100V Epoxy mold equipment ▶ PC-1000

RF-430 series

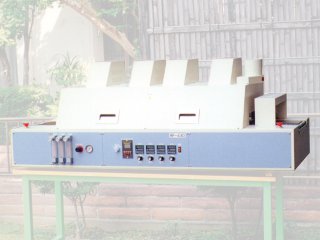

RF-430 is a small reflow soldering machine based on far-infrared and hot air heat convection, and designed specially for nitrogen gas (N₂). As this series is of IR 4 zone type, a stable temperature profile can be obtained.

Features

This is table top type N₂ reflow soldering machine. (O₂ density : about 1000ppm)
The heating source is IR and hot air heat convection, consisting of 4 zone heating sections.
In future you can modify the basic model to the model applicable to N₂. (with manufacturer's assistance)

Specifications

		M1/IR	M2/IRN2	M3/HA	M4/HAN2
Heating section	Zones	4
	Length	980mm
	Width	300mm
	Height of an inlet	50mm
Heating	Method	far infrared rays
	Gas	Atmosphere	Nitrogen(N₂)	Atmosphere	Nitrogen(N₂)
	Convection	Natural convection		Forced convection
	Temperature control	P.I.D. temperature controller.
	Max temperature	300°C
Conveyor	Method	SUS mesh belt.
	Width	300mm
	Speed	90 to 1400mm/min
	Direction	R → L or L → R (at user's request)
Cooling		Forced cooling by a fan on the outlet side.
Power supply		Single phase 200V About 6.7kW Single phase 220V About 7.8kW
Nitrogen supply quantity		-	about 20 to 100ℓ/min	-	about 20 to 100ℓ/min
Safety devices		Leak/Over-current breaker Emergency stop switch alarm output (over/under temperature / heater disconnection)
External dimensions		(W)1600×(D)660×(H)560mm		(W)1600×(D)660×(H)600mm
Weight		about 140kg		about 180kg
