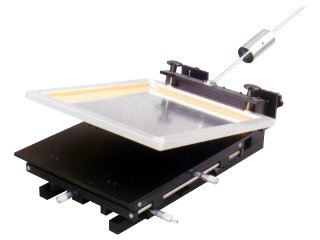

SP-650
Features
- Both aluminum cast and aluminum pipe frames can be used.
- Fine tuning of X, Y, and θ can be performed simply.
Specifications
| Applicable frames (Internal dimensions) | Cast | 205×255mm 385×385mm (485×535mm) |
|---|---|---|
| Pipe | 270×350mm 470×570mm 580×680mm | |
| Mask | Metal screen (SUS:t=0.15, 0.2, 0.25, 0.3), Silk screen | |
| Applicable circuit boards | Size | 50×50mm to 350×450mm |
| Thickness | 0.125 to 2mm | |
| Vacuum pump | Option | |
| Fine adjustment | By table(X,Y,θ) Micro meter | |
| Squeegee | Size | (t)9×(W)50×(L)150mm with handles |
| Hardness | 80° | |
| Table dimensions | (W)400×(D)520×(H)10mm | |
| External dimensions | (W)400×(D)1030×(H)480mm | |
| Weight | 25kg | |
