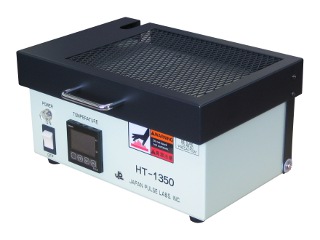

HT-1350C
Danger that touches the hot plate of the high temperature disappears by covering with the cover after it uses it.
Features
- Constant temperature is maintained through proportional thermoregulatory control.
- Operation is facilitated by provision of the work plate.
Specifications
| Hot plate | 120×140mm |
|---|---|
| Work plate | 120×140mm |
| Operable temperature range | 0 to 300°C |
| Temperature precision | ±1% |
| Sensor | Thermoelectric couple K(CA) |
| Temperature control | PID |
| Heater | Plate heater 350W |
| Start-up time (20°C→200°C) | 7 minutes |
| Applicable circuit boards | Max 120×140mm |
| Power supply | AC100V/120V/220V/240V 360W |
| External dimensions | (W)260×(D)200×(H)137mm |
| Weight | 3kg |
