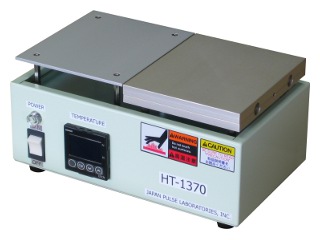

HT-1370

HT-1370 is a highly sensitive hot-plate, specially designed for reflow soldering of Hybrid IC boards, Mini-SMT boards, and such. This model includes a work plate, providing greater efficiency and safety.

Features

Constant temperature is maintained through proportional thermoregulatory control.
Operation is facilitated by provision of the work plate.

Specifications

Hot plate	120×140mm
Work plate	120×140mm
Operable temperature range	0 to 350°C
Temperature precision	±1%
Sensor	Thermoelectric couple K(CA)
Temperature control	PID
Heater	Cartridge heater 300W/120V×2
Start-up time (20°C→200°C)	8 minutes
Applicable circuit boards	Max 120×140mm
Power supply	420W/100V, 510W/220V
External dimensions	(W)250×(D)180×(H)120mm
Weight	2.5kg
