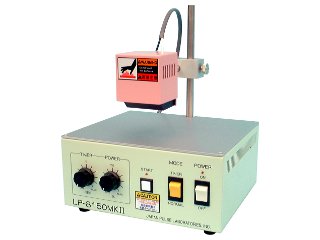

LP-8150MK2
Features
- Near-infrared rays emitted by the 150W halogen lamp are collected by the reflecting mirror, which concentrates some 850°C of heat at the focal point (a spot with a diameter of about 5mm).
- No heating takes place outside the focal point. Because the light beam produces non-contact heating, it can be described as "clean heat".
- Immediately on switching ON, within about 1 second soldering can be done within an area of 5mm diameter in the case of a printed circuit board (using cream solder on chip parts).
- With the 4mm diameter quartz rod lens (sold separately), soldering can also be carried out inside small (5mm diameter) plastic bobbins (heat at point directly under the lens 450°C).
- Luminescence (heat) output can be adjusted from 10% to 100% of full power.
- Lamp box is freely adjustable in the up-down, forward-backward directions, and can be easily installed on a robot arm, etc.
Specifications
| Light (heat) source | Halogen lamp 15V 150W (with mirror) | |
|---|---|---|

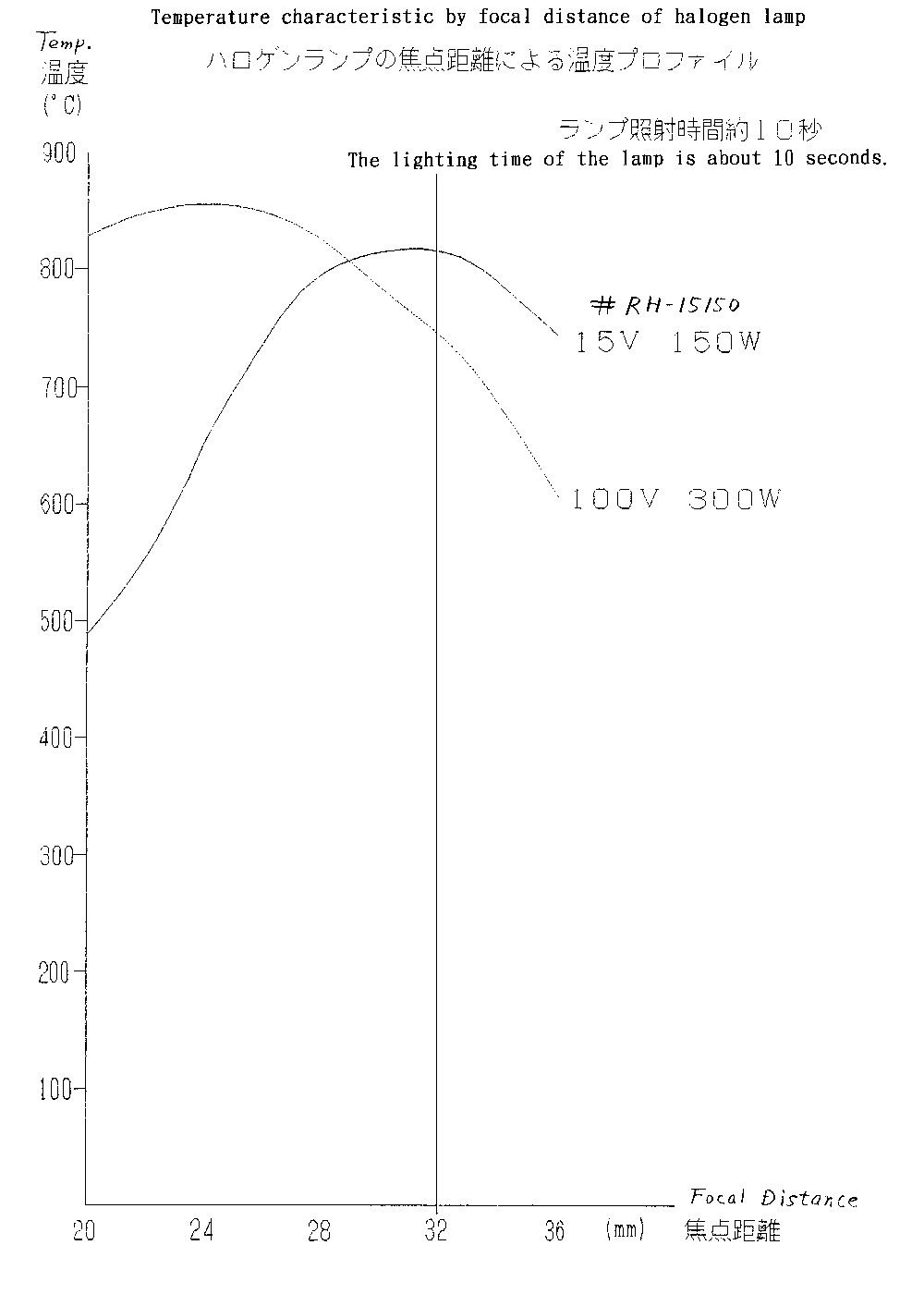

| Focal point | Distance | 32mm |
| Diameter | 5mm | |

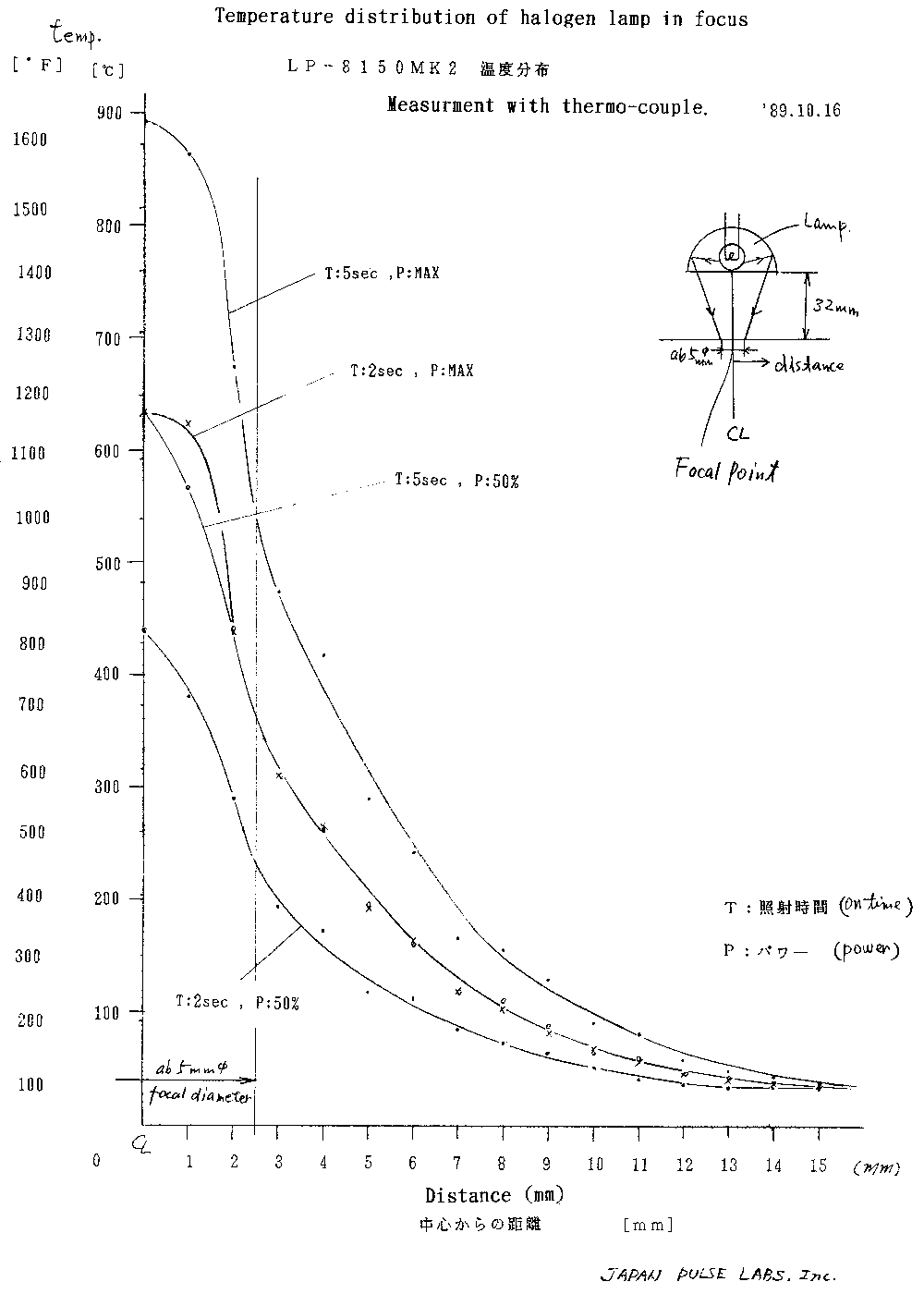

| Temperature | Max about 850°C (calibrated with thermocouple) | |
| Light (heat) output | 150W (100 to 850°C) adjustable 10% to 100% | |
| Irradiation time | NORMAL | START switch or REMOTE SWITCHING operation |
| TIMER | 0.1 to 10 seconds interval (1 to 100 seconds with changeover) | |
| Output control | Wave form phase controlled by thyristor. | |
| Remote switch | A contact or transistor switch 5V 30mA. | |
| Power supply | AC100V/120V/220V/240V 150W 50/60Hz | |
| External dimensions | (W)230×(D)200×(H)300mm | |
| Weight | about 6.5kg | |
