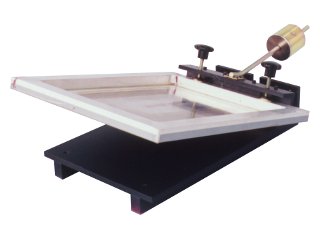

SP-300L

This SMT manual screen printer use metal masks to apply solder paste (solder cream) and adhesives to printed circuit boards. Both aluminum cast frames and aluminum pipe frames can be used.

Features

Both aluminum cast and aluminum pipe frames can be used.

Specifications

Applicable frames (Internal dimensions)	Cast	205×255mm
Applicable frames (Internal dimensions)	Pipe	180×250mm 270×350mm
Mask		Metal screen (SUS:t=0.15, 0.2, 0.25, 0.3), Silk screen
Applicable circuit boards	Size	50×50mm to 200×300mm
Applicable circuit boards	Thickness	0.125 to 2mm
Vacuum pump		Option
Fine adjustment		By mask frames
Squeegee	Size	(t)9×(W)50×(L)100mm
Squeegee	Hardness	80°
Table dimensions		(W)250×(D)330×(H)10mm
External dimensions		(W)250×(D)600×(H)200mm
Weight		7kg
