RF-110N2

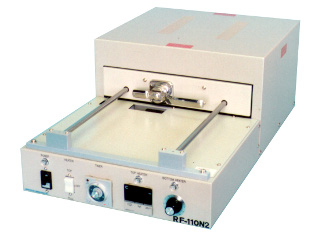

RF-110 is a manual far-infrared reflow soldering machine which is applicable for nitrogen(N₂) gas. It can reflow-solder both faces of 200×200mm printed circuit boards. Highly suitable for trial manufacture, testing and production of small quantities of multi-kind of SMT board. With this machine, less than 1000ppm of oxygen density can be achieved with a slight volume of nitrogen gas consumption.

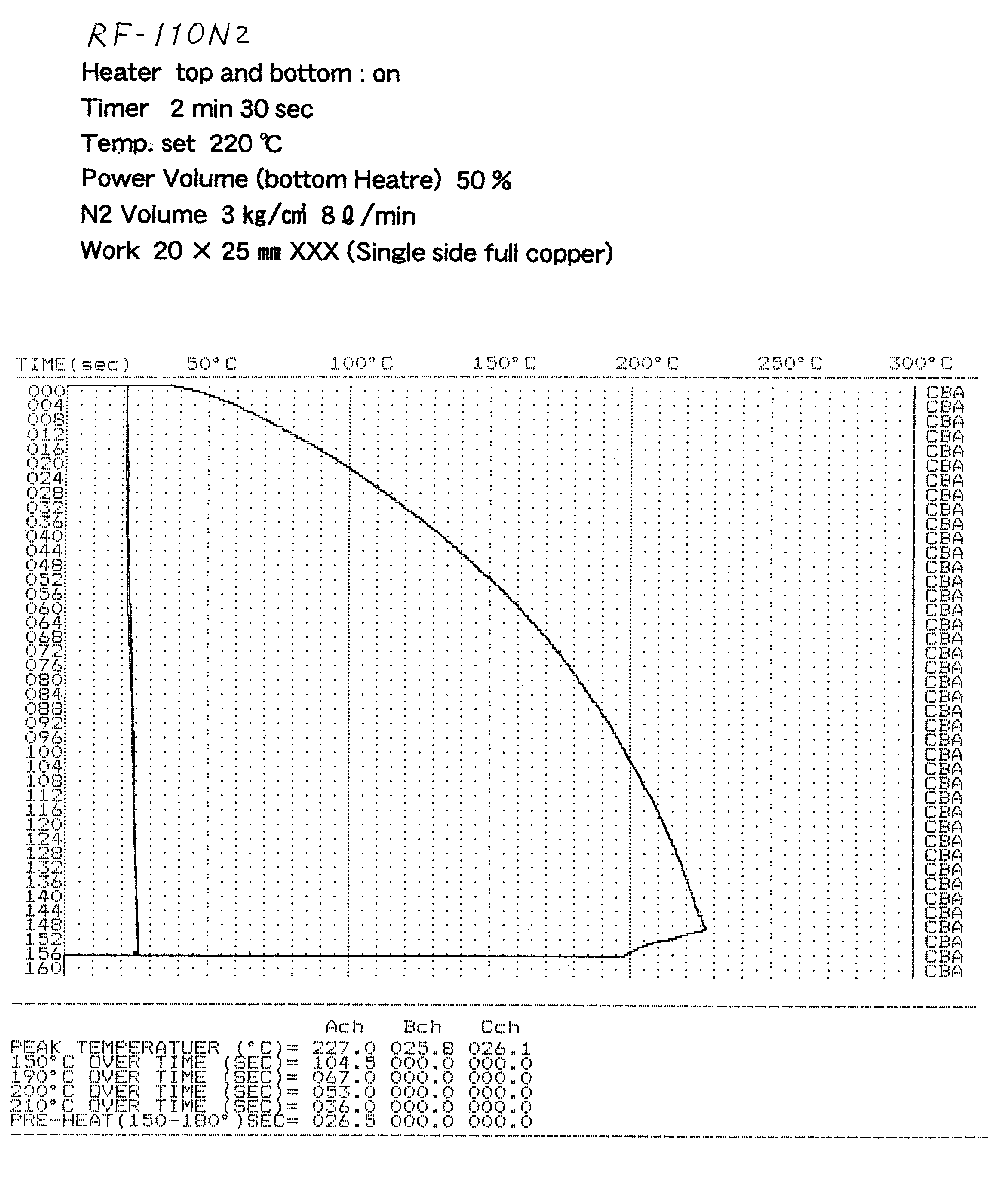

• It is infrared 1 zone heating type. The temperature profile can be set with a timer and a temperature controller.
• It can reflow-solder both sides of PC boards, without applying adhesive to the printed board up to 200×200mm.
• It is desk-top type nitrogen(N₂) reflow soldering machine which is the smallest in the world and cheap.

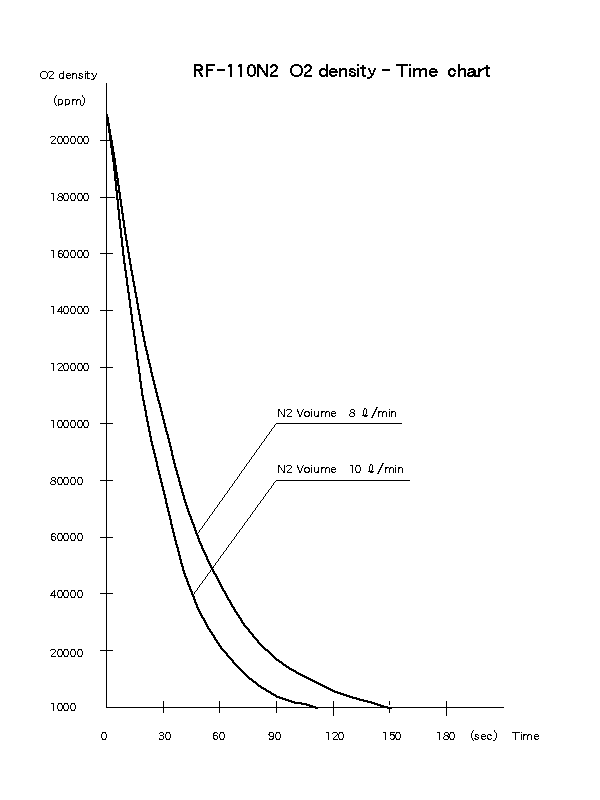

• Although the volume of the consumption of nitrogen per one time reflow soldering is as slight as 20 to 30ℓ, less than 1000ppm can be achieved.

Heating section	Zones	1
	Depth	210mm
	Width	210mm
	Height of an inlet	20mm
Heating	Method	far infrared rays
	Temperature control	P.I.D. temperature controller.
	Max temperature	300°C
Conveyor		Batch type
Timer		0 to 10 minutes. analog timer.
Cooling		Natural cooling.
Power supply		AC120/220V 1.5kW 50/60Hz
Nitrogen supply quantity		20 to 30ℓ/One time(2'30") The supply of N2 is only during the time from START to timer OFF.
External dimensions		(W)340×(D)590×(H)210mm
Weight		about 14kg
