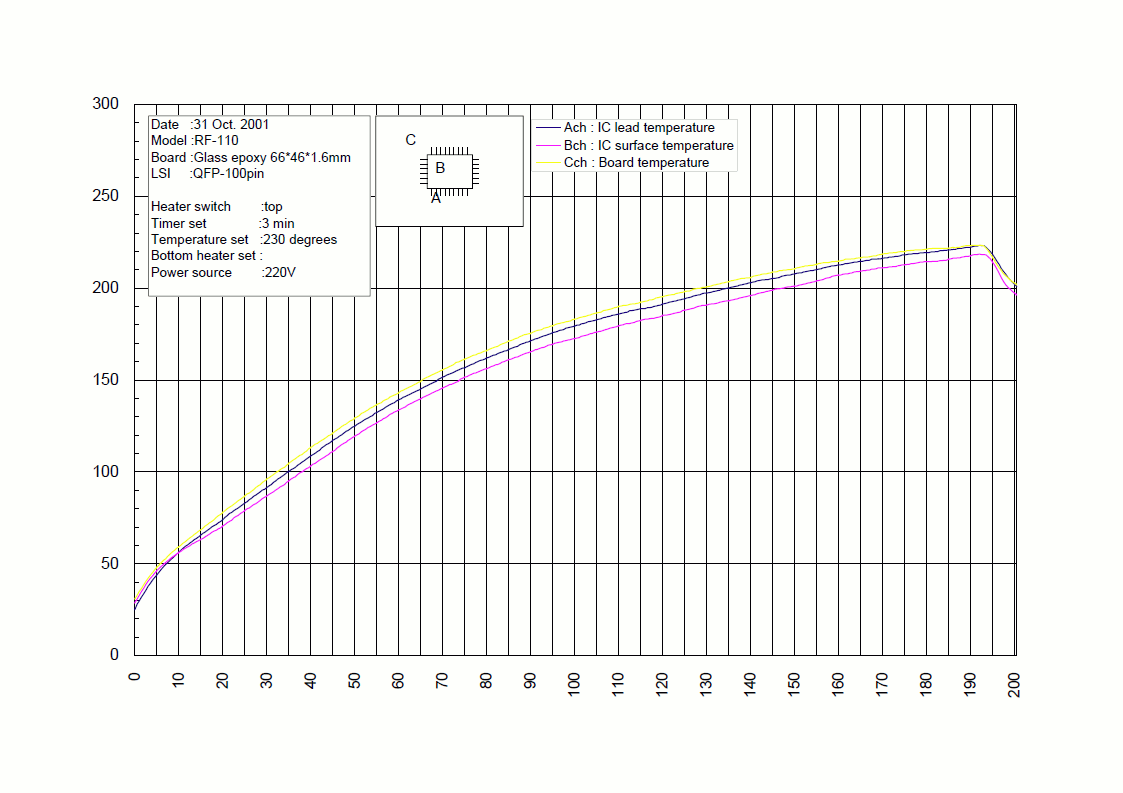

Time chartRF-110 / RF-110N2
RF-110 is a manual far-infrared reflow soldering machine. It can reflow-solder both faces of 200×200mm printed circuit boards. Highly suitable for trial manufacture, testing and production of small quantities of multi-kind of SMT board.RF-110N2 is a manual far-infrared reflow soldering machine which is applicable for nitrogen(N2) gas. With this machine, less than 1000ppm of oxygen density can be achieved with a slight volume of nitrogen gas consumption.
Features
- It is infrared 1 zone heating type. The temperature profile can be set with a timer and a temperature controller.
- It can reflow-solder both sides of PC boards, without applying adhesive to the printed board up to 200×200mm.
- It is desk-top type nitrogen(N2) reflow soldering machine which is the smallest in the world and cheap.(RF-110N2)
- Although the volume of the consumption of nitrogen per one time reflow soldering is as slight as 20 to 30L, less than 1000ppm can be achieved.(RF-110N2)
Specifications
| RF-110 | RF-110N2 | ||
|---|---|---|---|
| Heating section | Zones | 1 | |
| Depth | 210mm | ||
| Width | 210mm | ||
| Height of an inlet | 20mm | ||
| Heating | Method | far infrared rays | |
| Temperature control | P.I.D. temperature controller. | ||
| Max temperature | 300°C | ||
| Conveyor | Batch type | ||
| Timer | 0 to 10 minutes. analog timer. | ||
| Cooling | Natural cooling. | ||
| Power supply | AC120/220V 1.5kw 50/60Hz | ||
| Nitrogen supply quantity | - | 20 to 30L/One time(2'30") The supply of N2 is only during the time from START to timer OFF. | |
| External dimensions | (W)300×(D)550×(H)195mm | (W)340×(D)590×(H)210mm | |
| Weight | about 12kg | about 14kg | |
